(parts H10713, H10714)

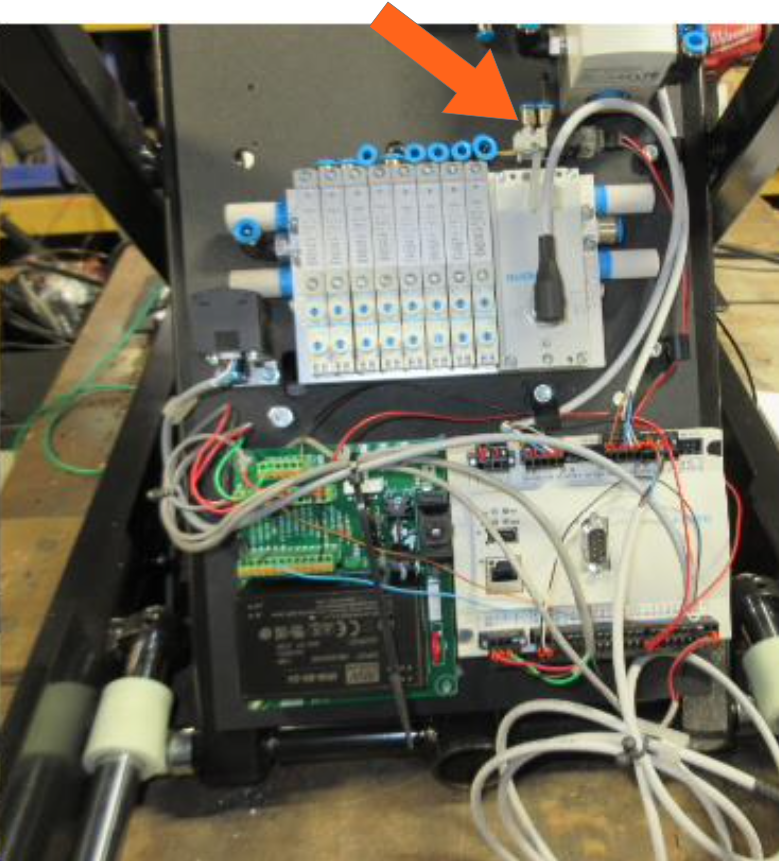

1. To access: Remove two or three screws from the outer section of plastic skirt on the opposite side of the table from the control box side. The plastic skirt can be pulled away to reach the unloader valve identified by the orange arrow in the photo below.
2. Only disconnect the red and black wires at the unloader valve. Squeeze the tab on the connector at the end of the wires to disconnect.
3. Disconnect air hose at the unloader by pressing in the blue ring on the valve fitting as you gently pull the hose out of the fitting.
4. The unloader is made of two parts that are joined together with screws. When the valve is assembled connect the hose and the wires to test the valve. The LED on the valve will be on when the compressor is running and the compressor will stop running within 3 minutes.
5. Mount the unloader valve to the plastic mount board.
