(part number H10499)

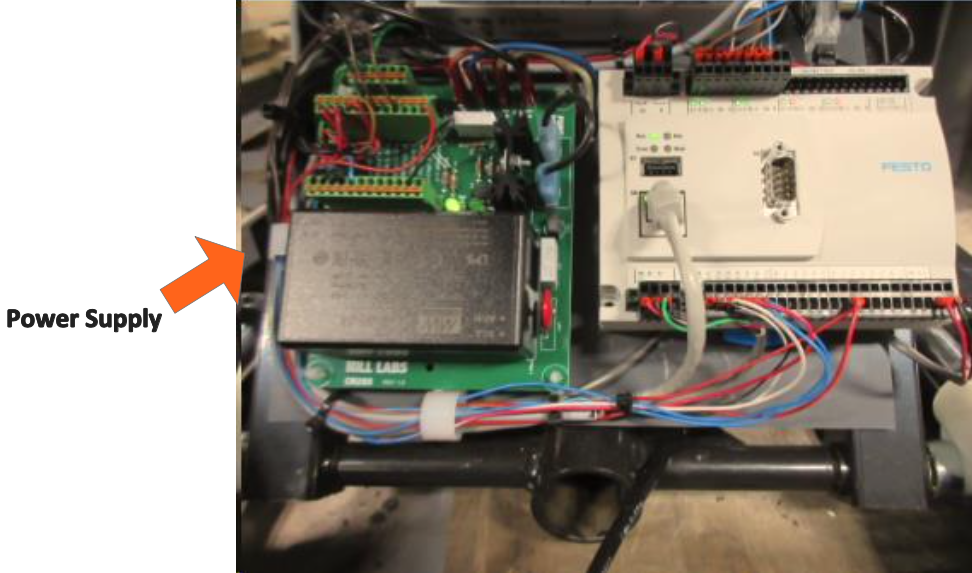

Location of the Power Supply
You can use the height pedal to lower the table so that you can see these components through the gap in the skirting at the foot end of the table. You can get easier access to the components by removing the screw that holds the plastic to the top frame as you face the foot end and also the screw that holds the inner section to the base at the foot end.
Make sure the table is unplugged while disconnecting and connecting wires.

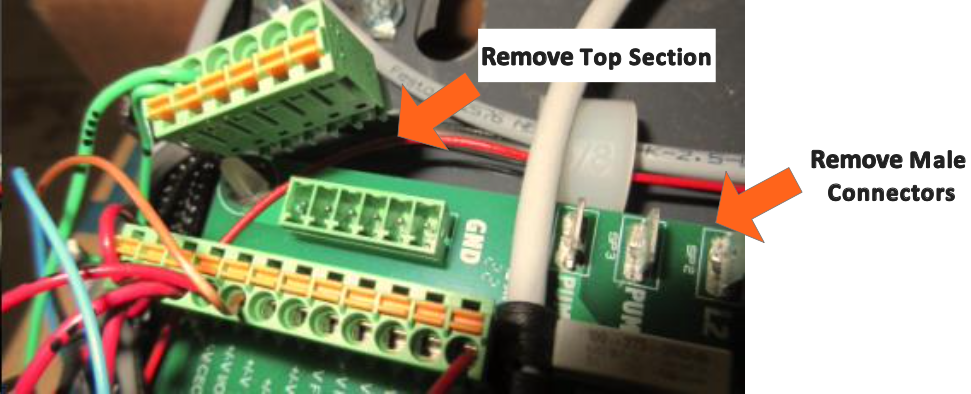

The upper section of each green terminal block connector can be grasped and pulled straight up from the board and inserted at the same location of the new board.
