Replace Unloader Valve, Air Flex II, Tables 2019 - Current



Air Flex II - Tables 2019 - Current

1. Use the photo to locate the original unloader.

2. Connect the hose from the original unloader into the new unloader.

3. Replace the red and black wire of the original unloader with red and black of the new.

4. You may remove the two screws securing the original unloader to remove it to provide space. Secure the new unloader to the mount board with the Velcro.

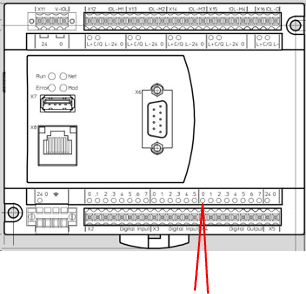

The red and black wires are connected to the same terminals, identified below, that the original unloader was connected to.





                                         REPLACE UNLOADER
                                                      Tables 2019 - Current
