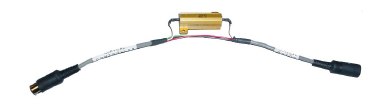

PARTS: H8234 Linak Speed Modification Cable large wire tie
- UNPLUG THE TABLE.

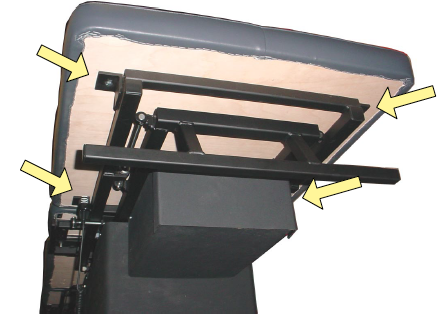

To gain access to the internal control components use a 7/16 inch wrench to remove the four hex head bolts that secure the large leg cushion to the frame.

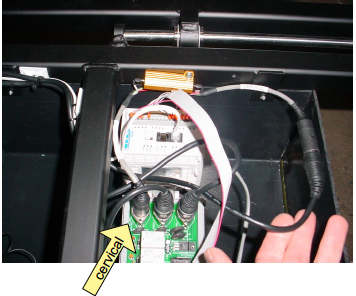

2. Refer to the photo below. The metal component can be secured to the steel frame at the location shown using the enclosed wire tie.
3. Unplug the actuator cord from the left position on the board which is marked "cervical". Plug the new cable into the board. Connect the actuator cord to the other end of the new cable.
