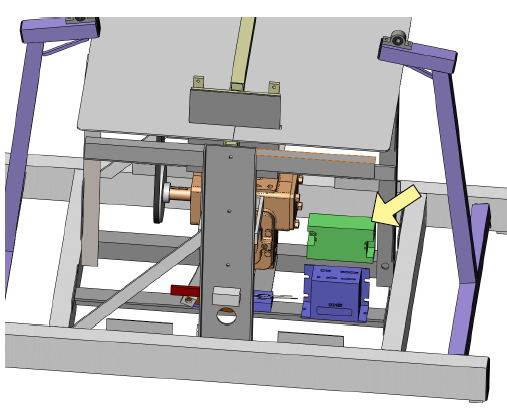

The power supply can be mounted on its side, as shown (green object), or laid flat.
All mounting holes of the power supply are M3 thread. Drill two 1/8" holes at 4-5/8" from each other in the steel angle of the base to mount the power supply on its side or 4-11/16" apart if mounted flat.
Transfer the wires to the equivalent terminals of the new unit.
