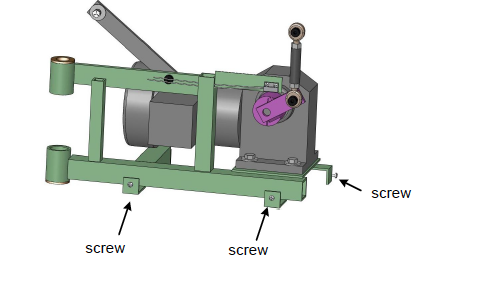

Access the motor area: Remove the screws along the bottom edge of the plastic cover to access the motor.

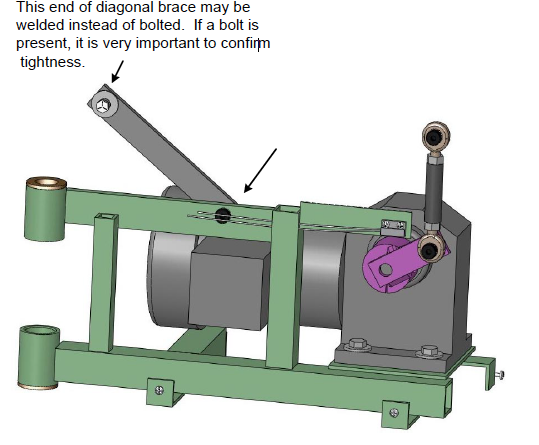

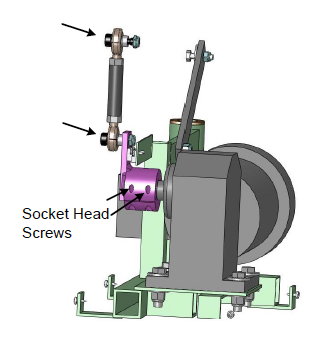

Pivot points have self-lubricating brass sleeves so that introducing oil should not be necessary. Periodically check all bolts, in the assembly shown, for tightness.
