Symptom - Does not stop only when "Horizontal" is selected.

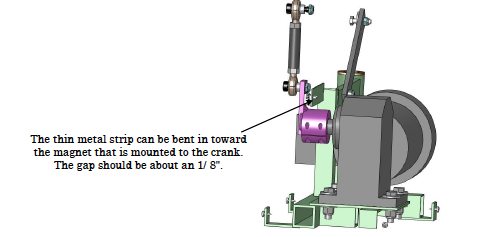

Possible Causes - Reed switch needs to be moved closer to the magnet on the crank or bad reed switch or wire to reed switch disconnected.

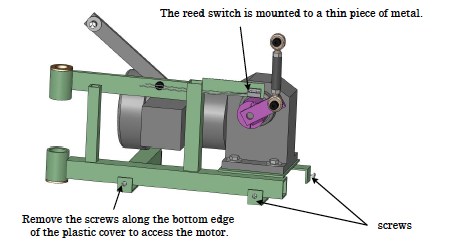

These components are located under the leg cushion of the table. Refer to the diagram below for location of screws to remove for access.
Symptom - Does not stop whether "Horizontal" selected or not.
Possible Causes - Try the patient stop button on the arm rest.
If the table stops then the problem is either a loose wire on the red stop button at the foot end or broken wire connection to that button.

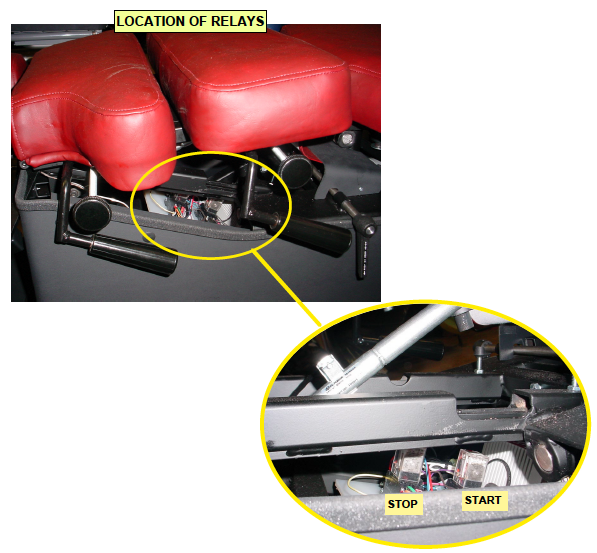

If the arm rest button doesn't work either then possibly the ice cube relay (see below) is loose in its socket, a bad wire connection at the relay or a bad relay.
Each relay has a red light on top. When the Start button is pressed the Start relay stays lit while the flexion is running. Both relays will be lit at the time the Stop button is pressed. If it is not lit then the Stop relay is bad.
