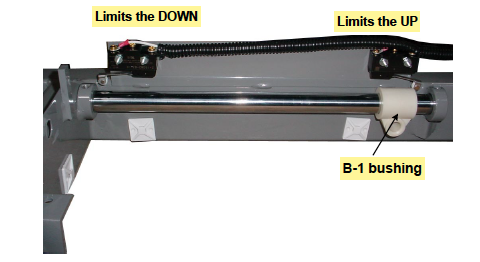

EXPLANATION OF SWITCH: The motor cuts off when the plastic B-1 bushing glides on the chrome shaft and causes the lever on the switch to lift up. You can hear a subtle click when this happens.
ACCESS TO THE BASE: The best access is achieved by using the height pedal to elevate the table. Unplug the table. Remove the six screws that secure the plastic enclosure to the steel base. The plastic can be held up by another person, string, tape, or plastic clamps.
ADJUST THE SWITCH: Bend this lever down enough so that the roller makes contact with the B-1 and rides up onto it. Bend only a little at a time.
