IMPORTANT: This board is used in 2, 3, and 4-motor tables. Your table may not have all the colors. Connect the colors you do have to the terminals designated for the colors you do have.

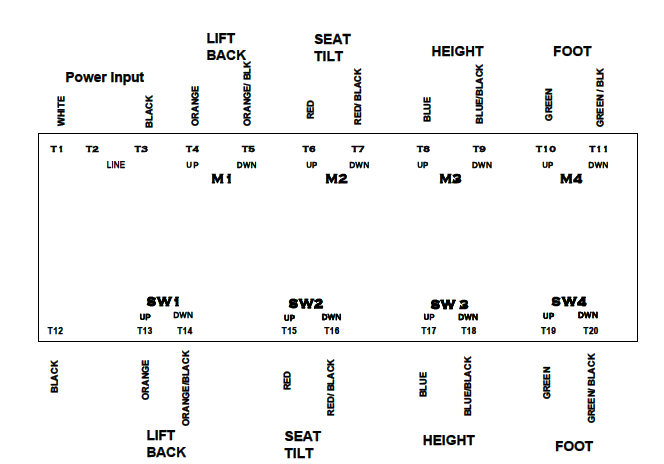

CM132 - 4-motor board
WIRE 66
IMPORTANT: This board is used in 2, 3, and 4-motor tables. Your table may not have all the colors. Connect the colors you do have to the terminals designated for the colors you do have.
CM132 - 4-motor board
WIRE 66
