Auto return board compared

  • Updated

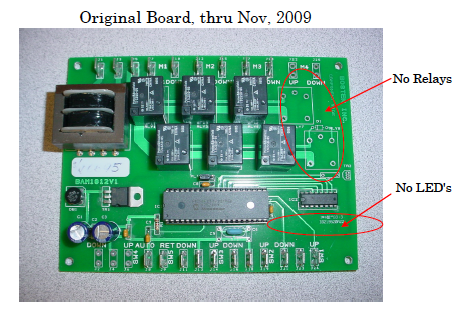

IF have original board and replacing with new board, refer to WIRE 24B. IF replacing new board with new board, refer to WIRE 74C.

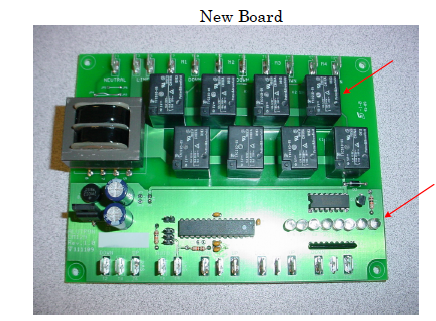

NOTE: Use this drawing only if your board has a row of lights (LED's) on it .

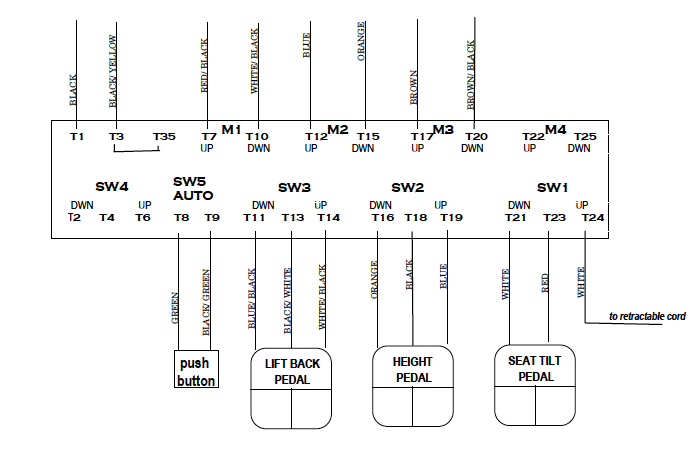

WIRE - 24B

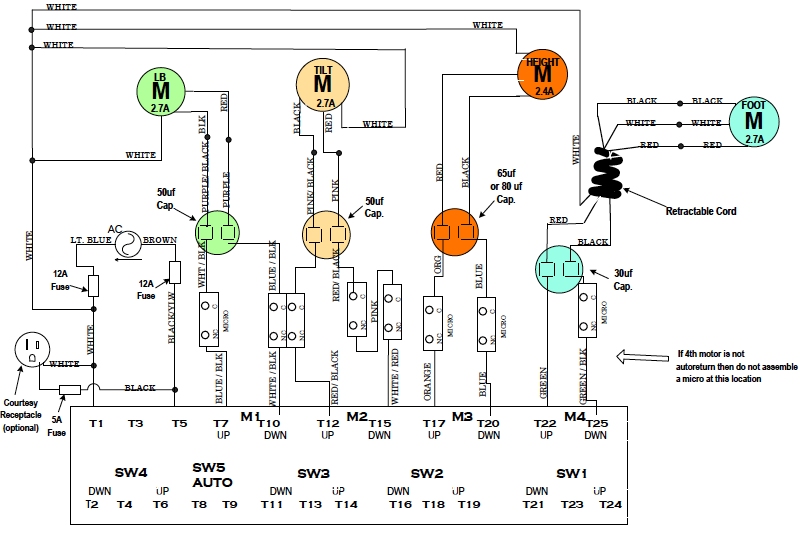

WIRE - 74C

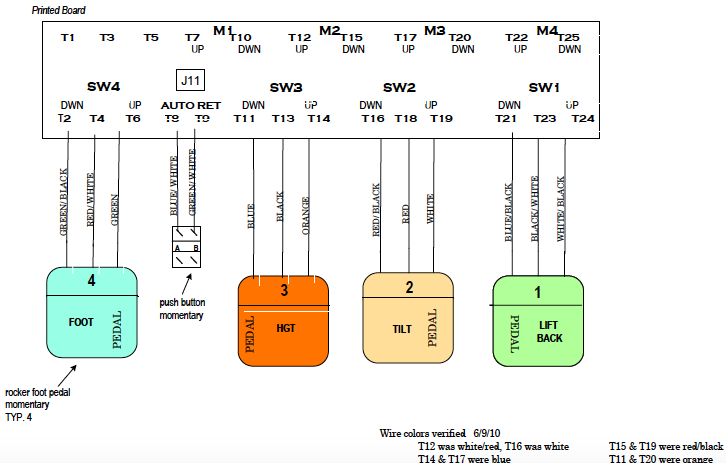

NOTE: When a shunt is placed across the two pins at J11 then only motors 1,2,3 will respond to auto return.
