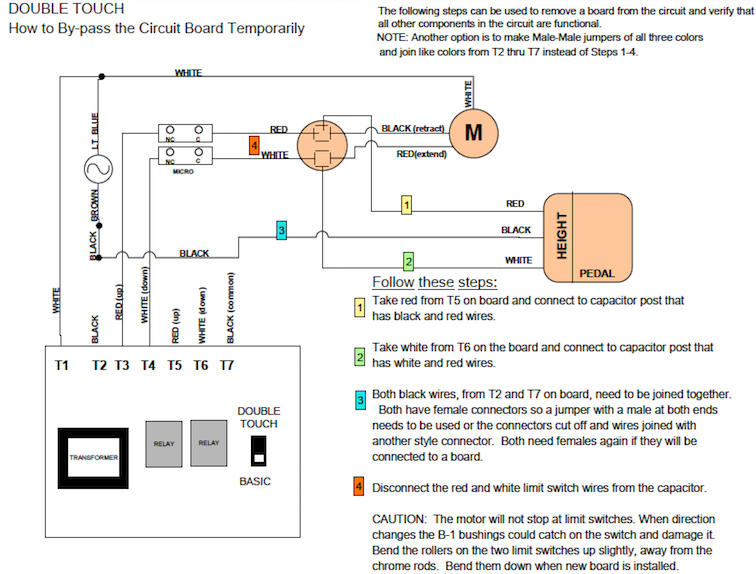

How to temporarily bypass the circuit board

May 11, 2020 15:25
Updated


Was this article helpful?

0 out of 0 found this helpful
