Move HEIGHT function to available terminals:
FOR ACCESS TO THE BOARD:
IF YOUR TABLE IS ELEVATED AT ALL:
UNPLUG THE TABLE and remove the six srews that secure the plastic encloure to the steel base and lift up the enclosure. It can be held up with clamps or tape while you are working.
IF YOUR TABLE IS AT ITS LOWEST POSITION:

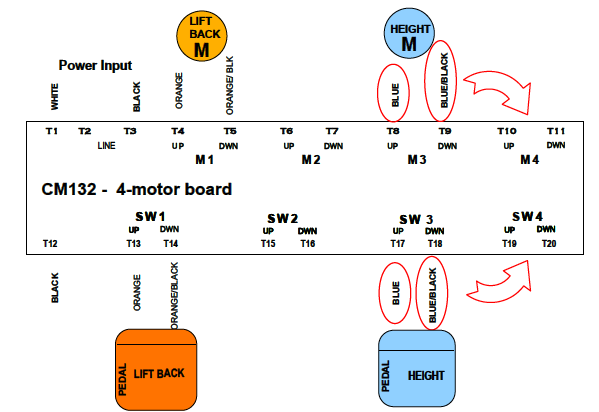

UNPLUG THE TABLE and lay the table on its side. You will need to access the board from underneath. Refer to the drawing to identify the color wires to be moved. Plug the wires onto the unused terminals. To disconnect a wire from the board pull straight up on the connector not the wire itself.
