REED SWITCH MOUNTING:
PARTS: Reed Switch H6852 Cord H6853 Cylinder Clamp H6854
- Remove the black plastic cap from the screw and then the screw from the cylinder clamp. The cap will not be reused. Wrap the strap around the cylinder and slide the small plactic block over the hole so that, when the plastic block is secured, the clamp will be snug enough to retain the reed switch at the desired location on the cylinder.
- Orient the parts as shown in Photo 1 to insert and tighten the screw.
- Use needle nose pliers to roll the excess strap as in Photo 2.

-
Connect the switch to the cord if the parts were not already joined. To do this, align the three pins of the switch connector with the female connector of the cord and push them together. Tighten the retaining ring.

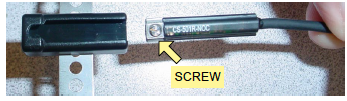

5. Slide the reed switch into the receiver located on the cylinder clamp and tighten the screw to secure the switch.
