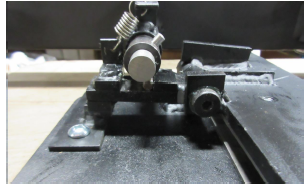

A. Spring could be broken. part #HS444
B. Pin could have sheared. part# H1099
C. Plate with teeth may have loosened and shifted.
Side view of same assembly.

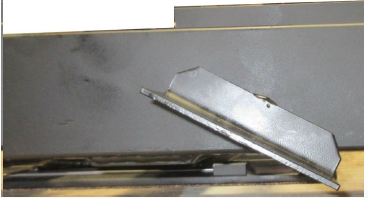

Check relationship of lock with teeth when pedal is in the locked position as shown.
