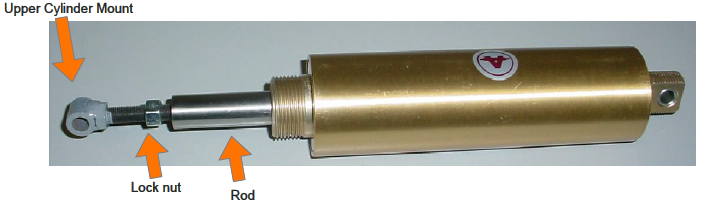

The cylinder in the picture is removed from the table. You should adjust your cylinder mounted in the table.
- Use the foot pedal to decrease the air pressure in the thoracic cylinder.
- Loosen the lock nut from the end of the cylinder rod.
- As you look at the cylinder from the rod end grasp the rod and turn the rod several turns in the clock-wise direction. The end of the rod should move further away from the upper cylinder mount. This lengthens the assembly, allowing the cushion to raise higher.
- Adjust it until the cushion height is satisfactory.
- Tighten the nut against the end of the cylinder rod to maintain this length.
