NOTE: This bracket can only be used if both bars that extend off the crossbar to support the cylinder are still firmly welded to the crossbar.
PARTS:
Bracket FR 11-129
bolts - 5/16-18 x 2" long hex heads with lock nuts (2 qty)

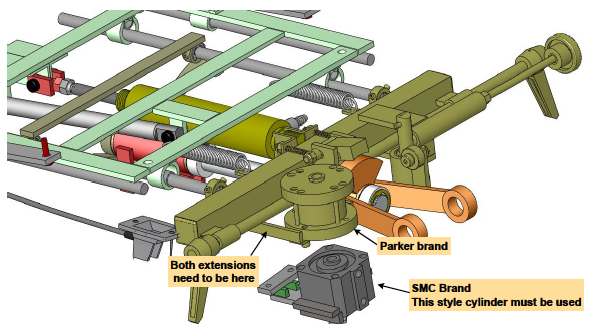

IF they have Parker brand (black & round) then send SMC cylinder (silver & square)
- The welded extensions need to be on the crossbar to support the new bracket.
- Hold the new bracket, with cylinder attached, against the bottom of the cross bar and mark the two holes.
- Drill 5/16" diameter holes completely through the 1 1/4" square tube at both marks.
- Use the enclosed bolts to secure the bracket.
