How to tighten set screw on parker auto flex motor

  • Updated
  1. Place the Flex Lock in the neutral position so that spur gear is not engaged in the rack.
  2. Remove the plug, as shown below, so that you can spot the location of the set screw.
  3. Turn the spur gear until youcansee the set screw in the hole on the side of the gear box.
  4. Use a 2.5mm hex wrench to gently adjust the set screw in.

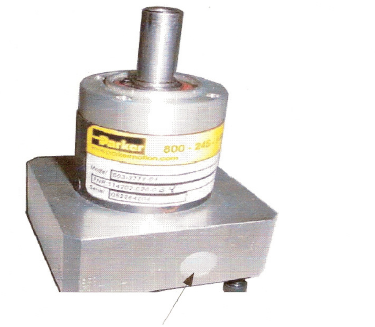

Plug

(2.5mm Set screw inside)
