To bypass the air regulator you will want to insert the distraction cylinder hose directly into the manifold.

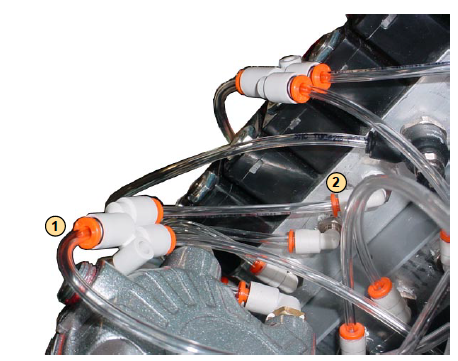

The photo below shows the area just above the air compressor. To access this area you will need detach one side of the plastic skirt which attaches to the top frame. Remove the screw on the opposite side of the table from the control box and also the screw at the foot end of the skirt. Grasp the foot end of the skirt and pull it down and away to access the inside of the table.
- Remove the hose from the Y-fitting (1) To do this, grasp the fitting and use your fingers to push the orange ring into the fitting while you gently tug on the hose with the other hand.
-
Remove the hose at fitting (2)
-
Insert the hose from Step 1 into the (2) fitting.
- Tie (or tape) the Y-fitting from Step 1 to the side of distraction cylinder hose from Step 3 so it does not get damaged by moving parts.
