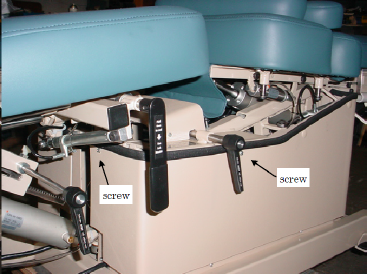

TO ACCESS: Remove the screws that secure the skirt to the top frame. A third screw is under the arm rest at the head end. Pull down and out on the skirt at the foot end to free it from the arm rest.

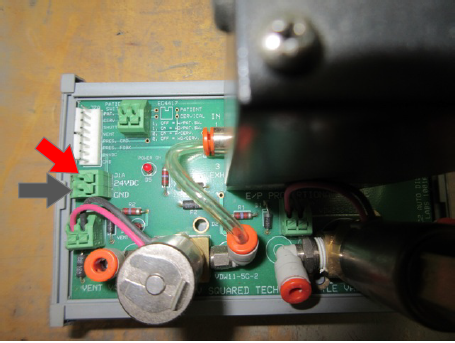

CONNECTIONS TO CHECK: Make sure a red wire is attached to "24VDC" and a black wire to "GND" on the Kelly board. These are for your patient switch.

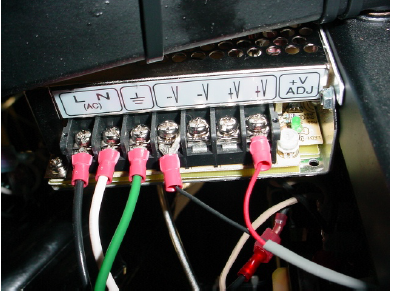

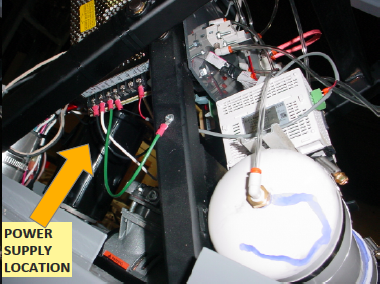

CONNECTIONS TO CHECK: The power supply is on the scissors. Make sure a red wire is attached to "V+" and a black wire to "V-" on the power supply. If the table has Auto Flex also then there will be 2 black and 2 red wires.
