INS-20A Replacement of height actuator

  • Updated

INS-20A

Parts: for Adjustables - H1034 (2004-present) or H4164 (1987-2003)

         for Air Flex / AFT - H1036 (2004-present) or H4165 (1993-2003 Air Flex only)

For tables built before 2/2004 Tools Required: A propane torch, a Vise-grip chain wrench or a 24" (or larger)pipe wrench, permanent thread locker, wire cutters or knife to cut wire ties, 1/4" allen wrench, 9/16" box end wrench, small wire brush.

1. Turn the table upside down.

2. Heat the last inch of the actuator adaptor tube where it joins the ball nut to soften the old lock-tite in the threads.

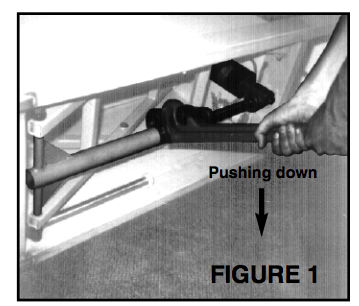

3. Using the chain wrench or pipe wrench, unscrew the actuator ball nut from the gray actuator adapter tube (see FIGURE 1). The table may have to be run to a higher or lower position to release one from the other. Use the wire brush to remove hardened lock-tite from tube threads. NOTE: Right hand threads - standard.


4. Unbolt actuator using a 1/4" allen wrench and the 9/16" box wrench. (see "A", FIGURE 2)


5. UNPLUG TABLE.

6. Cut wire ties and remove: -White actuator wire from white power cord. -Black actuator wire from capacitor -Red actuator wire from other side of capacitor. Actuator and motor assembly can now be removed.

7. Apply permanent thread locker to the threads of the ball nut on the replacement actuator. Start the threads by hand and then tighten with the chain or pipe wrench. IMPORTANT: Be careful not to crossthread

8. Rewire: -White power cord to white actuator wire. -Black actuator wire to red foot pedal wire on one side of capacitor. -Red actuator wire to white foot pedal wire.

9. Plug table back in.

10. Bolt in new actuator and apply wire ties to the above connections. In order to line up allen bolt with the bolt hole, it may be necessary to tap the foot pedal up or down while holding on to the motor. This will lengthen or shorten the actuator and align the holes.

11. Return defective actuator to Hill Laboratories Company.

*Avoid running the table to the lowest or highest position for twelve hours in order for the thread lock adhesive to adhere.
