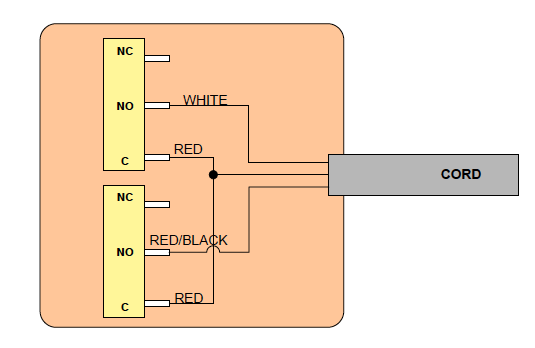

Tilt pedal terminal diagram May 08, 2020 20:59 Updated PEDAL TERMINALS -TILT- Related articles Tray not staying retracted INS-77 Replacing the tilt head short cable assembly My table height will not go down when using the foot pedal HA90P Podiatry Chair Troubleshooting tilt function
