Replace Printed Board:
The printed control board is located in the base of the table.
1. Use the foot pedal to elevate your table as high as possible.
- Unplug the table.
- Remove the 6 screws that secure the lower section of plastic skirting to the base and use tape or string to hold it up and out of your way.

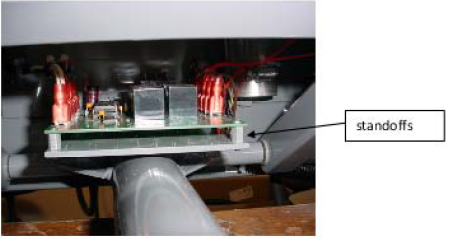

- The photo shows the board which is at the opposite end from the motor.
5. The board is secured to the metal plate by four screws at the corners. It is very important that the standoffs are used when mounting the new board to prevent contact between the circuitry and the metal plate on the base.

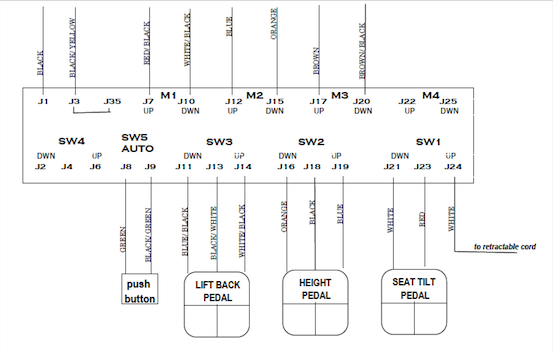

6. Use the enclosed wire diagram to reconnect the wires to the correct terminals.
NOTE: Use this drawing only if your board has a row of lights (LED's) on it.
